Aquila Equipe EVO R Dura-Ace R9270 Di2 Road Bike

The Evolution continues……

During the development process of the making the Equipe model better than ever before, we thought it was only suitable to attach the EVO designation to this project. EVO represents an evolution of always reaching for new heights. Since the launch of the Equipe EVO in 2018, our desire to keep pushing to be better, faster, and stronger hasn’t stopped..


All in one…..

Removed are the days of having to own multiple road bikes. No longer do riders required an aero bike, a climbing bike, an endurance bike… the reality is that isn’t a reality for most. Having one bike that can get the job done of multiple bikes is here.

What if you could have a bike that maximized aerodynamic efficiency, climbed like a mountain goat, and was surprisingly plush on those long training rides..

That bike is the Aquila Equipe EVO R….

Aerodynamic:

The Equipe EVO possesses groundbreaking aerodynamics over the original Equipe models. Through extensive work via CFD software, we were able to produce a frame that didn’t disrupt the key ingredients of the Equipe: light, comfortable and agile. While infusing a tremendous amount of aerodynamic efficiency. Traditional aero tube shapes are more aero than cylindrical tubes, however they are vertically stiffer, require more material for structural integrity and are therefore heavier. We wanted to understand where the peak of aerodynamics throughout critical areas of the frame. Where at that point start to round off each tube shape in order to keep weight low, and retain as much vertical compliance as required.

The Equipe EVO R takes this philosophy a step further..

Chordplane:

Instead of trying to control the air, we wanted to allow it to flow through the frame and fork. We achieved this by widening the crown of the fork and the rear seat stays by 2cm. Placing the alignment of these two areas on the same plane. Allowing for air to pass through in a more free flowing fashion, and exhaust out through the rear seat stays, resulting in reduced turbulence.


Lighter:

The Equipe EVO uses a triple blend of Torayca T700H, T800H and T1000G carbon with the use of our SLP: strategic lay up process. The last 2 seasons we experimented with a new blend of Torayca carbon incorporating amounts of T1100G carbon. The result is a lighter, more responsive and faster ride.


Integration:

The Equipe EVO features full cable integration. Not a cable in sight. Improved aerodynamics, and enhanced aesthetics.



Fine tune your Ride:

The Equipe EVO R provides the ability to run array of different tire sizes. Amplify agility with a 25mm tires, or crank up the comfort and traction with up to a 32mm tire.

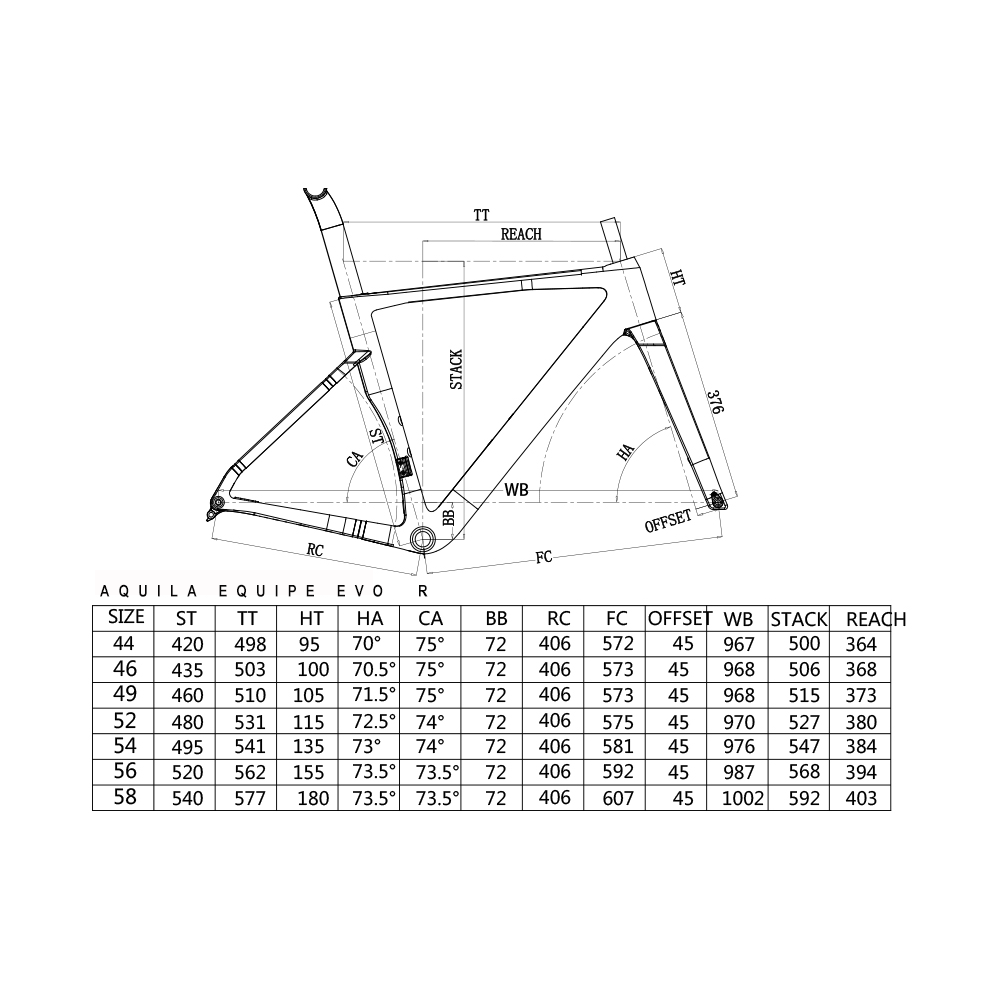

Frame: Aquila Equipe EVO R
Headset: Equipe EVO
FD: FD-R9250-F, Dura-ace Di2
RD: RD-R9250-F, Dura-ace Di2 12 Speed
Shifters: ST-R9270, Dura-ace Di2 12 Speed Hydraulic W/Calipers
Cassette: CS-R9200, DURA-ACE 12 Speed
BB: Ceramicspeed BB86
Rotors: ROTOR FOR DISC BRAKE, RT-MT900
Crankset: FC-R9200, DURA-ACE 12 Speed
Chain: CN-M9100-12 Speed
Cableset: ELECTRIC WIRE, EW-SD300
Misc: BATTERY CHARGER, CHARGING CABLE, EW-EC300
Misc: BATTERY, BT-DN300, BUILT-IN
Wheelset: Shimano Dura-ace WH-R9270 C50
Tires: Vittoria Corsa N.EXT TLR

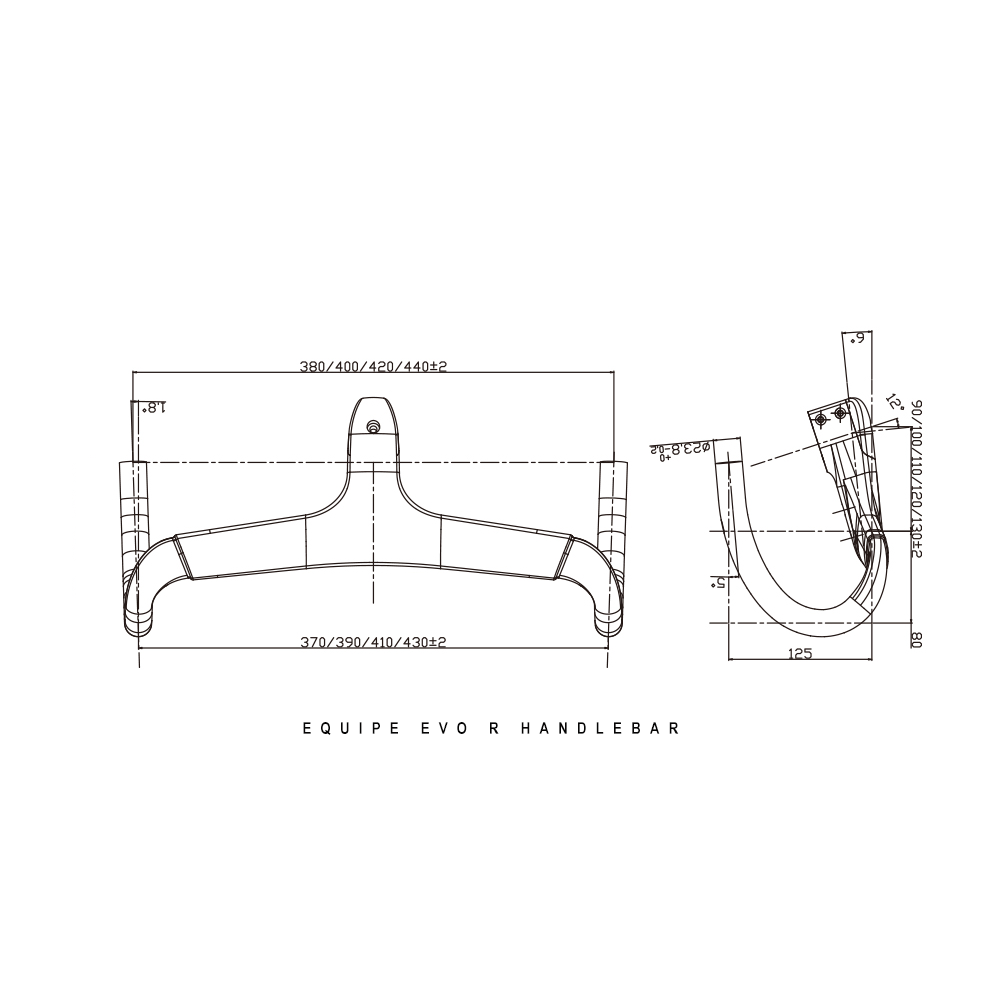

Bar/Stem: Equipe EVO Integrated
Seat Post: EVO
Saddle: Selle Italia Novus Boost
Tape: Supacaz Super Sticky Kush
Misc: K-Edge Computer Mount
